ShaftAlign Touch Laser Shaft Alignment Tool

SHAFTALIGN Touch

Adaptive Shaft Alignment for Standard Jobs

Frs Shaft Alignment Tablet

OPTALIGN Touch

Adaptability in laser shaft alignment.

Shaft Alignment Tablet

ROTALIGN Touch

The most adaptable laser shaft alignment tool

ROTALIGN Touch EX

The only adaptive laser shaft alignment system for EX areas

Applications

ShaftAlign Touch

Fundamental shaft alignment

Horizontal Standard Machines, Wind Turbines, Propeller Shaft in Ships, Vertically mounted Machines with Short-Flex Coupling

Turbo Machinery (More critical and higher speed), 3 Machine Train, Sleeve Bearing / White Metal Bearing

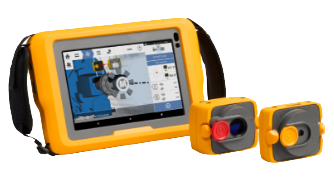

OptAlign Touch

Core alignment

Turbo Machinery (More critical and higher speed), 6 Machine Train, Sleeve Bearing / White Metal Bearing

Gas Turbines, Cardan Shafts, 6 Machine Train, Uncoupled Shaft

Any vertical machine type: Vertical Spacer Coupling, Vertical right angle gearbox

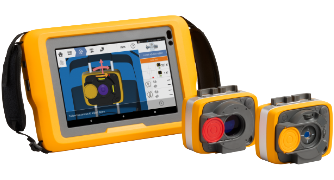

RotAlign Touch

Complex Machine Setups

Any vertical machine type: Vertical Spacer Coupling, Vertical right angle gearbox

Cardan Shafts (without removal of shaft)

Large machines with multiple couplings, Cooling Towers, Steam Turbines, Pipe Strains, 14 Machine Train

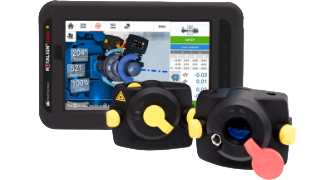

RotAlign Touch EX

Alignment in dangerous or hazardous environments. Zone 1 ATEX/IECEX certified.

Machine Train Alignment

ShaftAlign Touch

Up to 3 machines

OptAlign Touch

Up to 6 machines

RotAlign Touch

Up to 14 machines

RotAlign Touch EX

Up to 6 machines

Standard (Included) Features

ShaftAlign Touch

Live Move H or V

SoftFoot

8-Point Active Clock

Static Feet & Multiple Feet

Quality Factor & SD

OptAlign Touch

Live Move H or V

SoftFoot

8-Point Active Clock

Static Feet & Multiple Feet

Quality Factor & SD

Spacer Coupling

Thermal Growth & Coupling Targets

Vertical Alignment

Continuous Sweep & MultiPoint

3 Machine Train

Post Processing by Edit Points

RotAlign Touch

Live Move H or V

SoftFoot

8-Point Active Clock

Static Feet & Multiple Feet

Quality Factor & SD

Spacer Coupling

Thermal Growth & Coupling Targets

Vertical Alignment

Cardan Shaft

Continuous Sweep & MultiPoint

SoftFoot Diagnose

Up to 6 Machine Train

Pass Mode

Move Simulator

Advanced Vertical

Post Processing by Edit Points

RotAlign Touch EX

Live Move H or V

SoftFoot

8-Point Active Clock

Static Feet & Multiple Feet

Quality Factor & SD

Spacer Coupling

Thermal Growth & Coupling Targets

Vertical Alignment

Cardan Shaft

Continuous Sweep & MultiPoint

SoftFoot Diagnose

Up to 6 Machine Train

Pass Mode

Move Simulator

Advanced Vertical

Post Processing by Edit Points

Advanced (Optional) Features

ShaftAlign Touch

Spacer Coupling

Thermal Growth & Coupling Targets

Vertical Alignment

OptAlign Touch

Up to 6 Machine Train

Pass Mode

Cardan Shaft

RotAlign Touch

In-situ Cardan Shaft

Intelli Modes & Vibration

RotAlign Touch EX



Expert (Optional) Features

ShaftAlign Touch

Continuous Sweep & MultiPoint

3 Machine Train

Post Processing by Edit Points

OptAlign Touch

Move Simulator

Advanced Vertical

SoftFoot Diagnose

RotAlign Touch

14 Machine Train

Multi-Coupling

Live Trend

RotAlign Touch EX

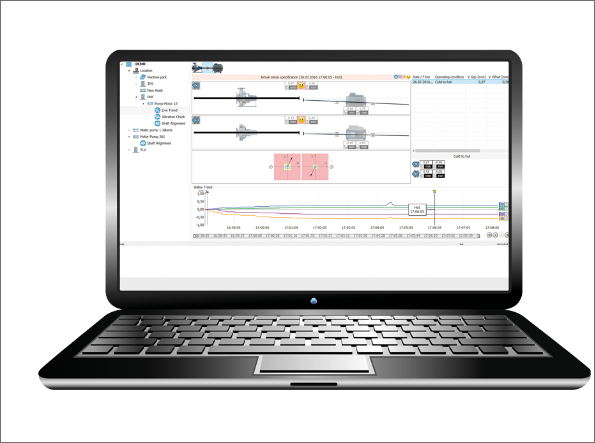

ALIGNMENT RELIABILITY CENTER 4.0

Manage and analyze your machinery alignment data like an expert

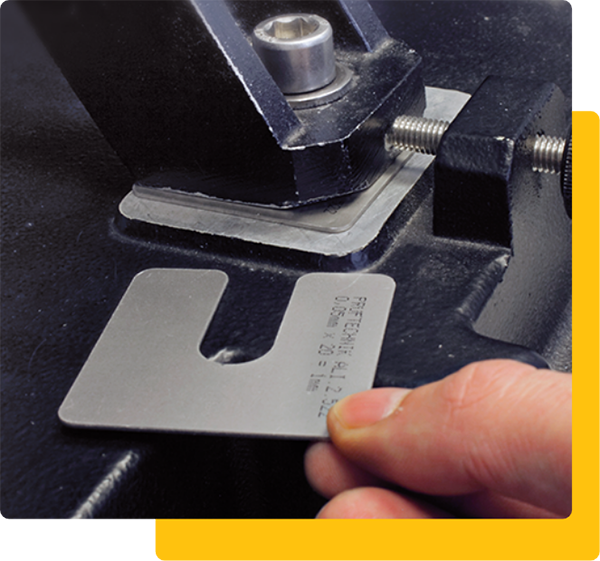

Stainless Steel Shims

Precut stainless steel shim sets speed up machine alignment

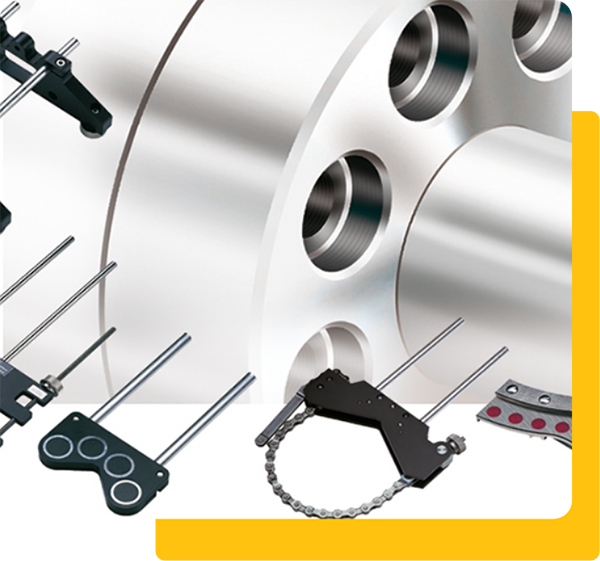

Brackets

Solid and versatile sensor mountings

Discontinued product Year of sales stop Product replacement
ALIGNEO EX 2016 ROTALIGN touch EX
OPTALIGN smart EX 2017 ROTALIGN touch EX
OPTALIGN smart RS5 2019 OPTALIGN Touch
ROTALIGN smart RS5 EX 2020 ROTALIGN touch EX
ROTALIGN Ultra iS 2019 ROTALIGN Touch
SHAFTALIGN 2020 SHAFTALIGN Touch
tab@lign 2020 SHAFTALIGN Touch
Thyssenkrupp logo

Quick Access to Useful Resources

service_img
Service

Need an expert? Our service engineers are fully qualified to troubleshoot and optimize your machines.

RepairandCalibration_img
Repair and Calibration

Calibration due? Send us your device and we will return it fully calibrated, checked and updated.

training_img
Find a training

Learn from experts and grow your maintenance skills: Find a training in your area.

Watchourvideos_img
Watch our videos

Discover our products and services and learn with our application videos.

Industries_img
Industries

Find out how we help manufacturers in many sectors improve the performance of their assets.

Maintenance_Know_How_img
Maintenance Know-How

Check our succes stories and case studies from our engineers in the field.

Frequently Asked Questions about Laser Alignment Tools

A laser alignment tool is a device that helps identify and correct shaft misalignment. Laser alignment is the quickest, most effective way to achieve shaft alignment across components. It can be used to align motors, shafts, gearboxes, blowers, and other components that use shafts to transfer mechanical power.

Laser alignment is much more accurate than traditional methods that employ rulers and dial gauges. Lasers provide precise, consistent information no matter who is doing the testing. Even technicians with little previous experience with alignment can use laser alignment tools.

Laser alignment tools are also quicker to set up than traditional methods. That means technicians need less time to measure and correct alignment issues, resulting in a reduction in downtime.

Other benefits of shaft alignment include reduced maintenance costs, improved asset performance, and increased equipment lifespan. Proper alignment reduces costs for equipment maintenance and replacement while improving the overall efficiency of the plant. It also improves safety for workers by reducing problems such as fuel and oil leakage.

Laser alignment tools work by firing a laser beam across a machine component, such as a rotating shaft, to measure for alignment. The data is then sent wirelessly to a user dashboard, where users receive real-time feedback as they make adjustments.

Since these tools are intuitive and easy to use, users of all experience levels can employ laser alignment tools to diagnose and fix alignment issues. Some laser alignment tools can also automatically filter out inaccurate data caused by coupling backlash and environmental vibration, allowing a perfect alignment even in less-than-ideal circumstances.

Laser alignment tools can be used for:

  • Horizontal alignment
  • Vertical alignment
  • Machine train alignment
  • Soft foot
  • Thermal growth

  1. Ensure the machine is off and that the area is cleared of debris to provide a safe working environment.
  2. Attach mounting brackets for the laser and the detector unit to either side of the coupling on either the shafts or the solid coupling hubs. Ensure both brackets are at the same rotational position.
  3. Mount the laser transmitter and the detector unit. If necessary, loosen the mounting brackets to make small adjustments to visually align the transmitter and detector units.
  4. Ensure the support posts are long enough to allow the laser to fully clear the coupling and reach the detector unit. Both units should be as low as possible while also being high enough to clear the coupling.
  5. Enter machine dimensions and tolerances as required by the laser alignment tool.
  6. Turn the laser on. If it is not touching the detector unit, make adjustments until the laser beam is making contact.
  7. Take the initial measurements. More advanced laser alignment tools also have the ability to take multiple readings as the shafts turn. If using a laser alignment tool with sweeping capabilities, continue taking measurements as the shafts rotate to receive more information about the misalignment and how to correct it.
  8. Use the information provided by the laser alignment tool to make adjustments to machinery, and repeat the measurements until achieving alignment within tolerances.

There are a few key things to consider when choosing the best laser alignment tool for your facility. Here are key features to consider as you decide:

Dual laser vs single laser:

Laser shaft alignment tools may use either a single laser or a dual laser. Lining up both lasers in a dual laser system can be challenging, particularly over long measurement distances. The dual laser system is also more challenging to use for repeat measurements and increases the risk of user error and the need to repeat measurements.

A single laser system is easier to use and takes less time to set up initially. It is easier to repeat measurements and provides precise information along with giving the user the capability to correct most shaft misalignments.

Ease of use:

In addition to selecting between the easier-to-use single laser system vs. the more difficult dual laser systems, there are other features to keep in mind. Choosing a laser alignment tool that has a clear display, intuitive user interface, and user-friendly software can allow less experienced technicians to perform alignments even without extensive alignment backgrounds.

Intelligent alignment software:

Some laser alignment tools come equipped with software capable of filtering out measurements that could affect alignment readings, such as vibrations. This software makes alignment quicker and easier in applications where these incorrect measurements could affect the outcome of the laser’s measurements.

Mobile connectivity:

For teams that work across many facilities or have multiple off-site locations, connectivity is a key feature to look for. With it, technicians can upload readings and alignment information to the cloud via Wi-Fi, Bluetooth, or an internal network, allowing easy documentation of alignment readings and corrections. Technicians can also troubleshoot together across sites in real-time, so more experienced team members can easily provide feedback or assistance when needed.

Speed and efficiency:

A quality laser alignment tool can provide quick readings and feedback. More advanced tools can take hundreds of readings during a single rotation of the shafts, removing the need to slowly rotate the shafts and stop rotation for each reading. This provides immediate feedback and reduces downtime by shortening the alignment process.
