Searching, locating, and prioritizing defects

  • Overall vibration level for quick assessment of the machine condition
  • Four different fault severity levels indicate the prioritization of the defect
  • Repair recommendations are issued directly
  • Several different machine types can be configured individually based on the rotational speed
  • Time-saving tri-axial accelerometer
  • Self-test function for optimizing the operating performance
  • Highly accurate determination of the machine speed by laser tachometer
  • Presentation of the measurement results in individual spectral diagrams for precise fault determination
  • All measurement results, especially large amounts of data, can be viewed and analyzed in the Viewer PC software

Interested?

Find out more…

Product description

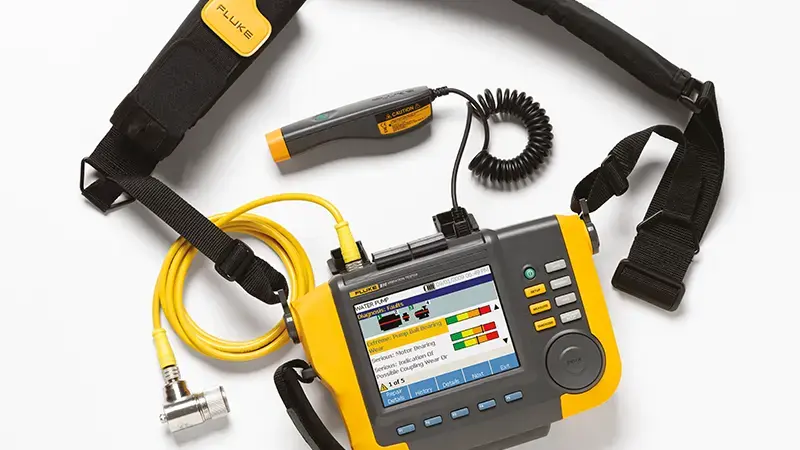

The Fluke 810 vibration tester detects low-level vibration causes, evaluates them for their criticality, and gives repair recommendations directly on site.

Spectral diagrams and detailed diagnostic reports help to specify the measurements and to locate the root cause of failure correctly. The tri-axial accelerometer (sensor) measures vibration data in three different degrees of freedom at once. This saves time in data acquisition, without the data quality suffering.

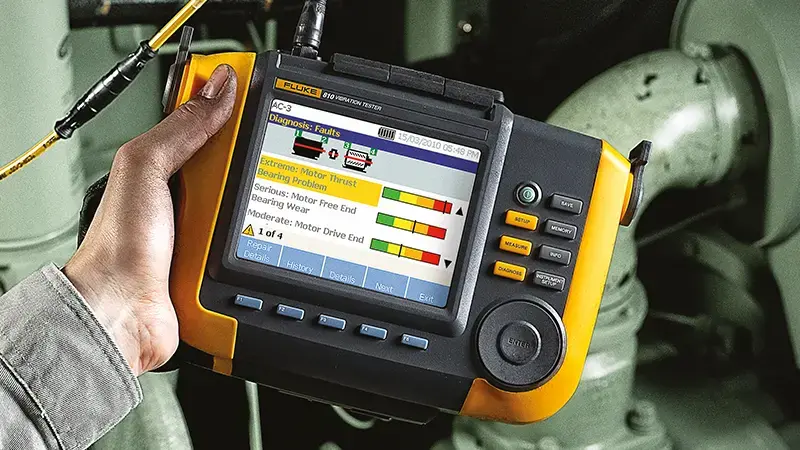

The fault diagnosis is divided into four different fault severity levels so that the urgency of a repair can be easily recognized.

The data can also be analyzed on a PC via the Viewer PC software.

Software

Using the Fluke Viewer PC software, the measurement data can be analyzed and stored as well as trend profiles created on a PC. At the same time, different machine types can also be created here and imported to the hand-held device.

To complete the machine data snapshot, you can add images (.jpeg) to the diagnostic reports created on PC.

Watch our videos for Vibration Analysis and Balancing with Fluke 810

  • How to measure Vibration with the Fluke 810 Vibration Tester

  • How to report, export, track and prioritize data with the Fluke 810 Vibration Tester

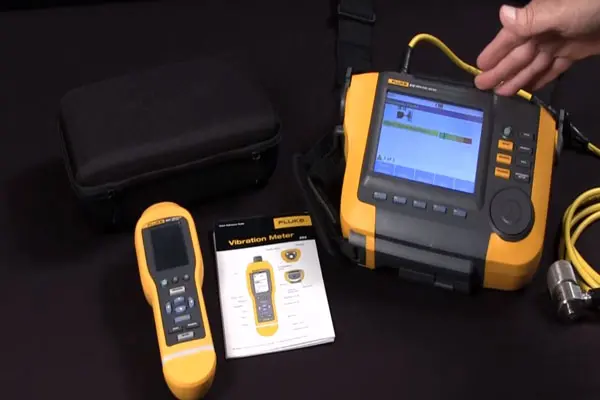

  • What are the differences between the Fluke 805 and 810
