Laser alignment
The future of laser shaft alignment is modular, adaptive, and built on single-laser precision.
Our latest systems deliver the speed, accuracy, and intelligence technicians rely on, and a new modular platform that lets you upgrade sensors and firmware easily to evolve your toolkit over time.
Which Alignment Tool Is for Me?

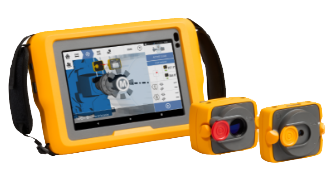

| Why Choose the RotAlign Core? |
|---|
| You want a cost-effective laser alignment solution that is easy to use |
| You need a compact, non adjustable laser for easier setup for standard machines |
| You only have 3 machine trains or less to align |
| You do not need Cardan Shaft Capability |
| You only have standard vertical machines to align |
| You have no multi-coupled machines to align |
| You do not need the more advanced Intelli modes and features |

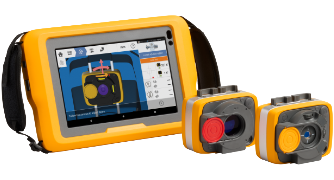

| Why Choose the RotAlign Elite? |
|---|
| You want the best, most capable laser alignment solution that covers everything from basic machine setups to the most advanced |
| You need an adjustable laser with higher angular resolution for more complex alignment challenges |
| You have more than 3 machines to align (up to 14 train machines possible |
| You would like to monitor in real-time the dynamic machine movement to derive machine pre-sets |
| You carry out vibration measurements during alignment troubleshooting |
| You have cardan shaft connected machines to align |
| You want the highest form of repeatability and advanced features that come with the Intelli modes |

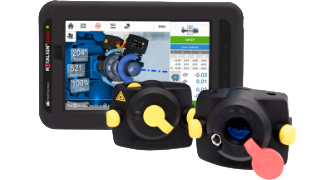

| Why choose the RotAlign Touch EX? |
|---|
| You need to carry out alignment in dangerous or hazardous environments |
| You need Zone 1 ATEX/IECEX certified tools |
| You have more than 3 machines to align (up to 6 train machines possible) |
| You would like to monitor in real-time the dynamic machine movement to derive machine pre-sets |
| You have advanced vertical machines to align |
| You have cardan shaft connected machines to align |
| You do not need the more advanced Intelli modes and features |

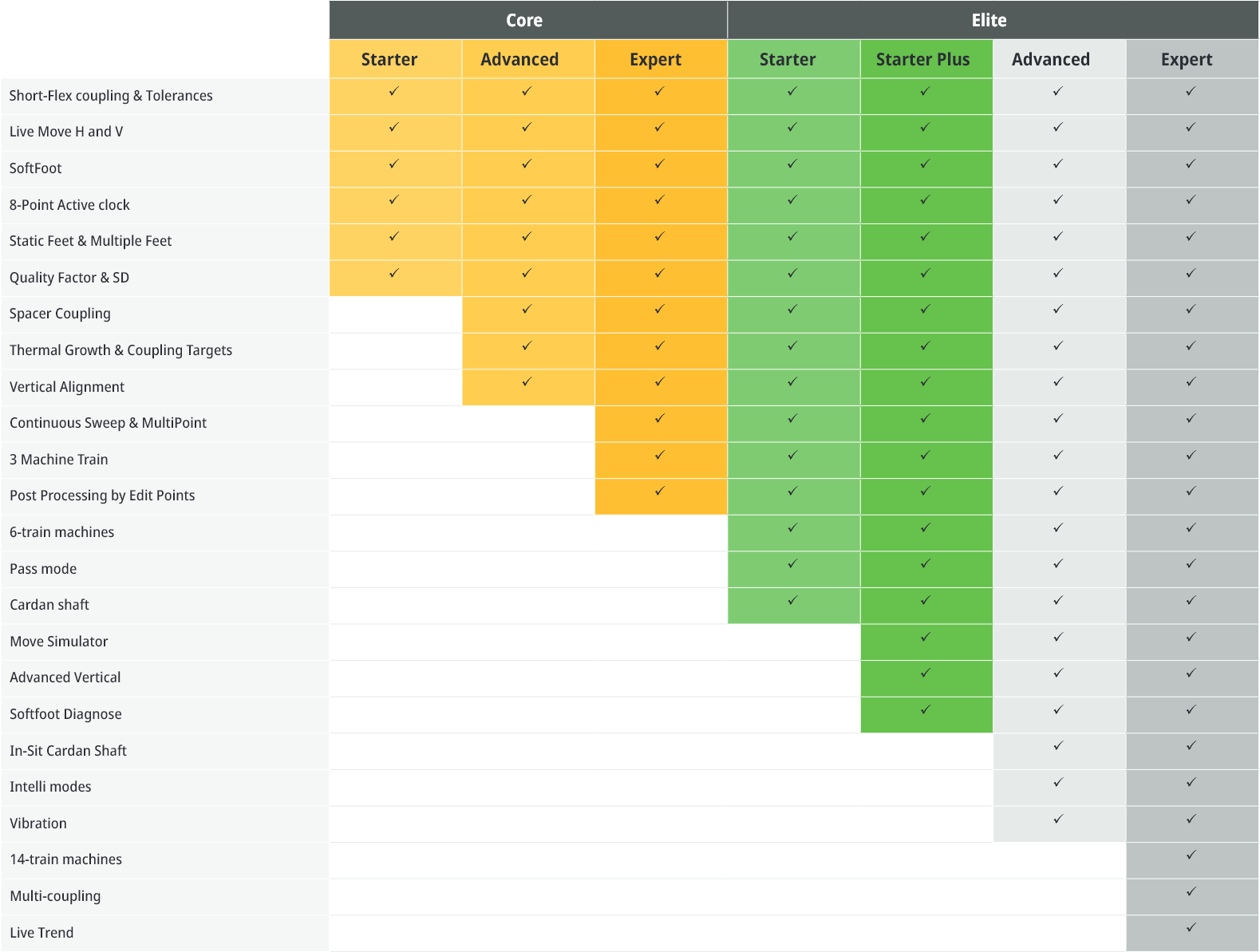

Shaft Alignment Tools Comparison Chart
Software

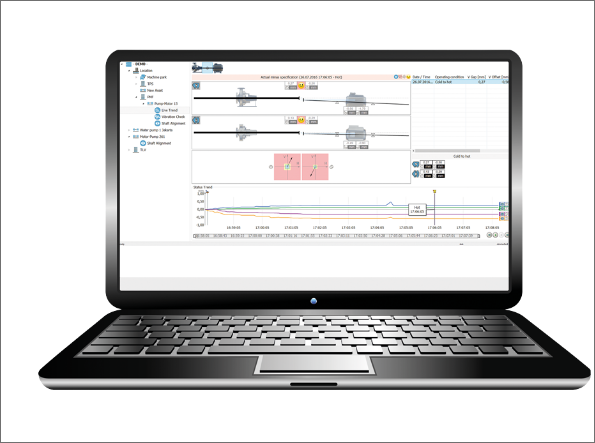

ARC 4.0 Software
Our comprehensive platform for managing and analyzing alignment data
- Standardize alignment workflows and seamlessly manage work orders
- Share alignment data in real-time with seamless integration between all our laser
- Build customized reports for OEMs, management, and auditors
Shims and Brackets

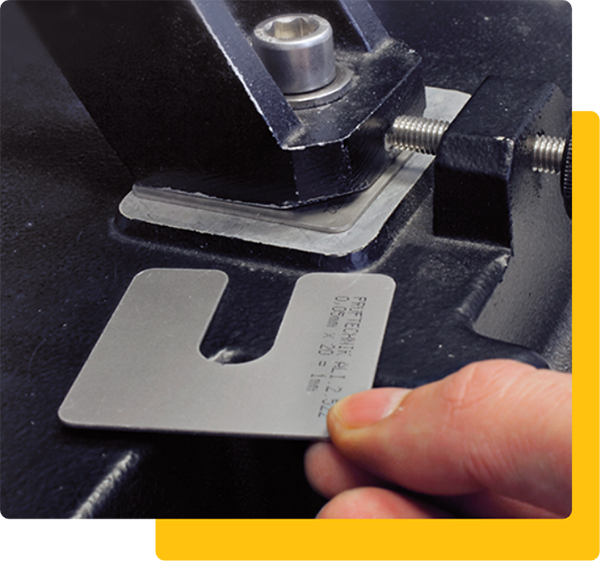

Permabloc and Lamibloc Shims
Precut stainless steel shims for fast, reliable alignment.
- Available in solid (Permabloc) or laminated (Lamibloc) versions
- Perfectly flat to prevent soft foot and vibration, even when stacked
- Corrosion-resistant stainless steel ensures long-term durability
- Assortment cases make it easy to find the right size on the job
- Lamibloc has peelable layers let you fine-tune shim thickness on site

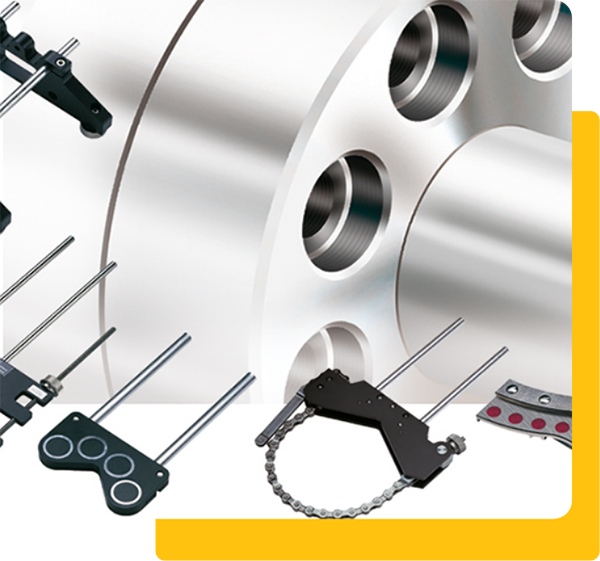

Shaft Alignment Brackets
Stable, versatile sensor and laser mounting for every shaft type.
- Standard, magnetic, extra-thin, and Cardan brackets available
- Supports shaft diameters from 15 mm to 500 mm
- Quick, secure setup with chain or magnetic options
- Stored pre-mounted in the case for faster alignment workflows
- Engineered for stability, even in tight or non-rotating setups
