ParAlign is a unique, non-optical measurement method using inertial technology designed to measure the parallelism of rolls in production installations in the paper, print, converting, steel industries, and web-handling/roll to roll transfer processes.
Misalignment in rolling machinery can lead to wasted material, inconsistent or low-quality products, and excess machine wear. Properly aligned rolls perform better, create more consistent products, and reduce wear and tear on machinery.
Three-ring laser gyroscopes enable the ParAlign to take measurements in three-dimensional space (roll, pitch, and yaw). No line of sight is required, which creates consistent, reproducible results.
Why choose a ParAlign Service?
FAST
Fastest measurement method available—measures up to 100 rolls per day.
COMPREHENSIVE
Can align rolls and surrounding structures, even in hard-to-reach areas.
ACCURATE
Resolution: 4 μm/m (0.05 mils/ft).
EFFICIENT
Improves product quality and reduces waste.
VISIONARY
No line of sight required.
FOUNDATIONAL
No baseline required.
How can we help you?
Please send us your inquiry and our experts will get back to you shortly.
Training
We offer alignment, vibration & balancing, ultrasound, and reliability training.
Types of Services
The Pruftechnik Services team offers two types of roll alignment utilizing the ParAlign gyroscopic technology: the ParAlign Service and the Peak RGA Service.
The ParAlign Service is performed with the ParAlign alone. When performing the service, the device is placed on a roll and swept a minimum of 20 degrees about the roll’s circumference. The ParAlign can be positioned anywhere along the circumference of the roll as long as there is enough clearance to complete a proper measurement using the SWEEP method. This flexibility allows for rolls to be measured on the top, bottom, or sides, depending on which is most accessible. The measurement takes about 30 seconds, and results are instantly transmitted wirelessly to a laptop.
The Peak Roll and Geometrical Alignment (RGA) Service is a total alignment solution combining the ParAlign with laser trackers to align rolls and their surrounding structures in the shortest time possible—while producing accurate results and instant visual reports. No other roll alignment method combines gyroscopic and laser tracker technology.
Frequently Asked Questions
What is Geometric Measurement?
Geometric measure theory (GMT) studies the geometric properties of sets through measure theory. It covers inclination, straightness, level, and flatness.
What are the Benefits of Using a Geometric Tool?
Geometric tools measure surface flatness, foundation levelness, straightness and parallelism, machine geometrics, and shaft plumbness.
Modern systems use laser technology, enabling faster and more efficient measurements of flatness, level, and perpendicularity.
The Benefits of Geometric Tools
Geometric tools, such as laser shaft alignment systems, allow users to take critical measurements, including machine geometrics, shaft plumbness, surface flatness, foundation levelness, straightness, and parallelism.
What Geometric Tools Can Help with Geometric Measurement?
Tools range from simple straightedges and squares to sensors, laser alignment tools, and inclinometers for angular deviation measurement.
Why Surface Flatness and Level are Critical to Laser Shaft Alignment?
Flatness and level are essential to shaft alignment because when a machine is not flat or level, it can cause shaft misalignment.
What Tools are Used When Making a Geometric Measurement?
Many tools are used, from straightedges and squares to precision laser shaft alignment tools.
What our clients say?
“The difference in the calendered part quality was noticeable immediately upon production startup after their work was complete, and the return on investment has already paid for itself in saving waste material…. The speed and precision of their service is second to none.”
Interested?
Find out more…
Pulp & Paper
PARALIGN increases machine availability and product quality

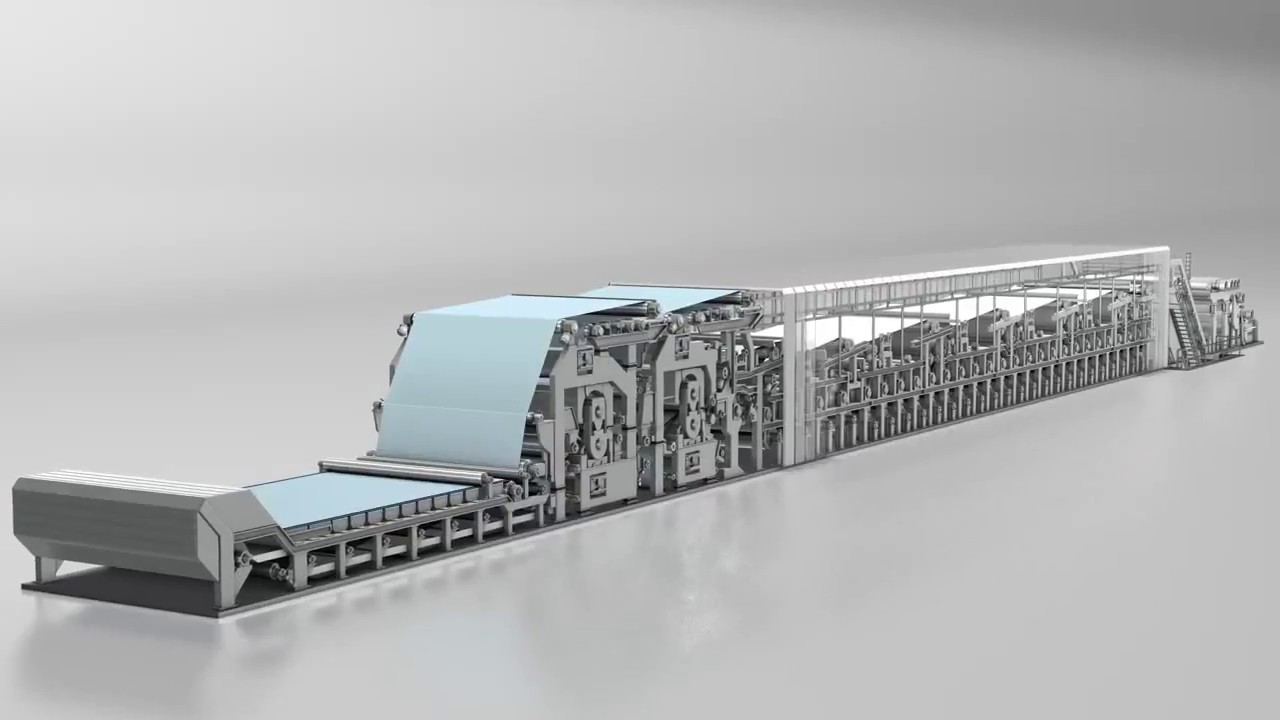

Press Section
- Prolong lifetime of wires, felts, and roll covers
- Decrease folds and creases
- Ensure uniform moisture profile

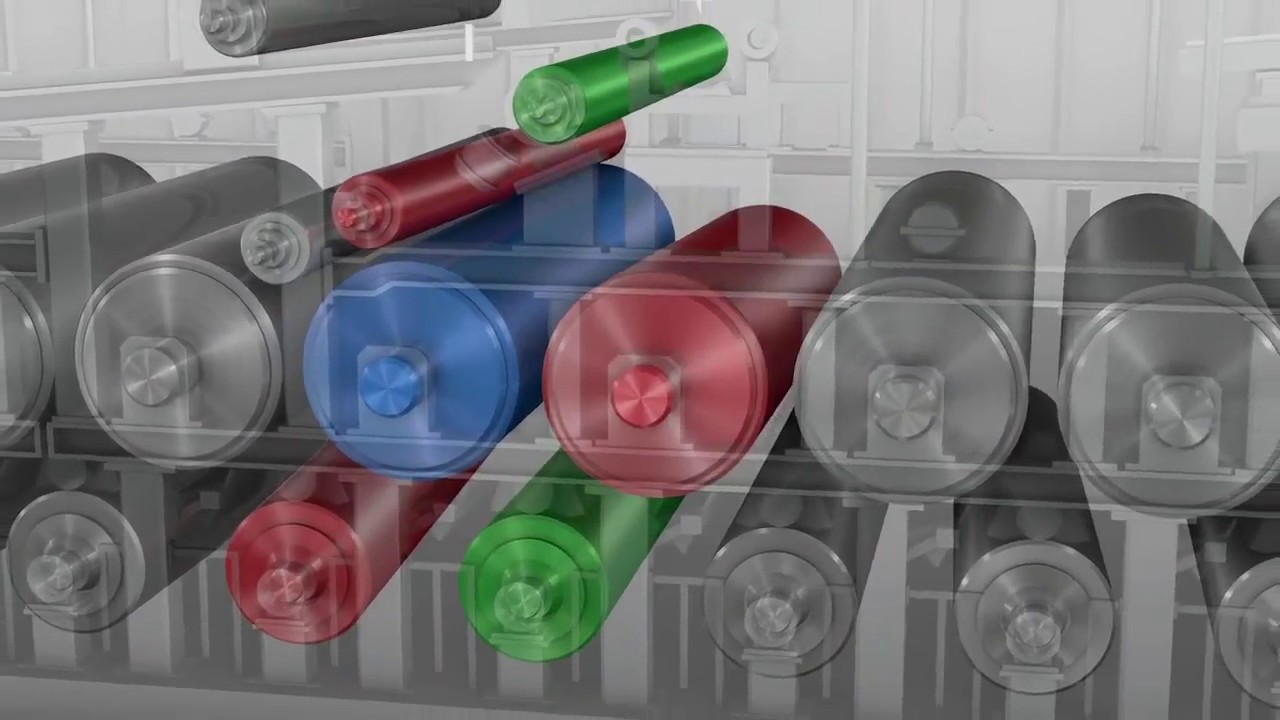

Drying Section
- Prolong lifetime of fabrics and roll covers
- Decrease folds
- Ensure uniform thickness profile

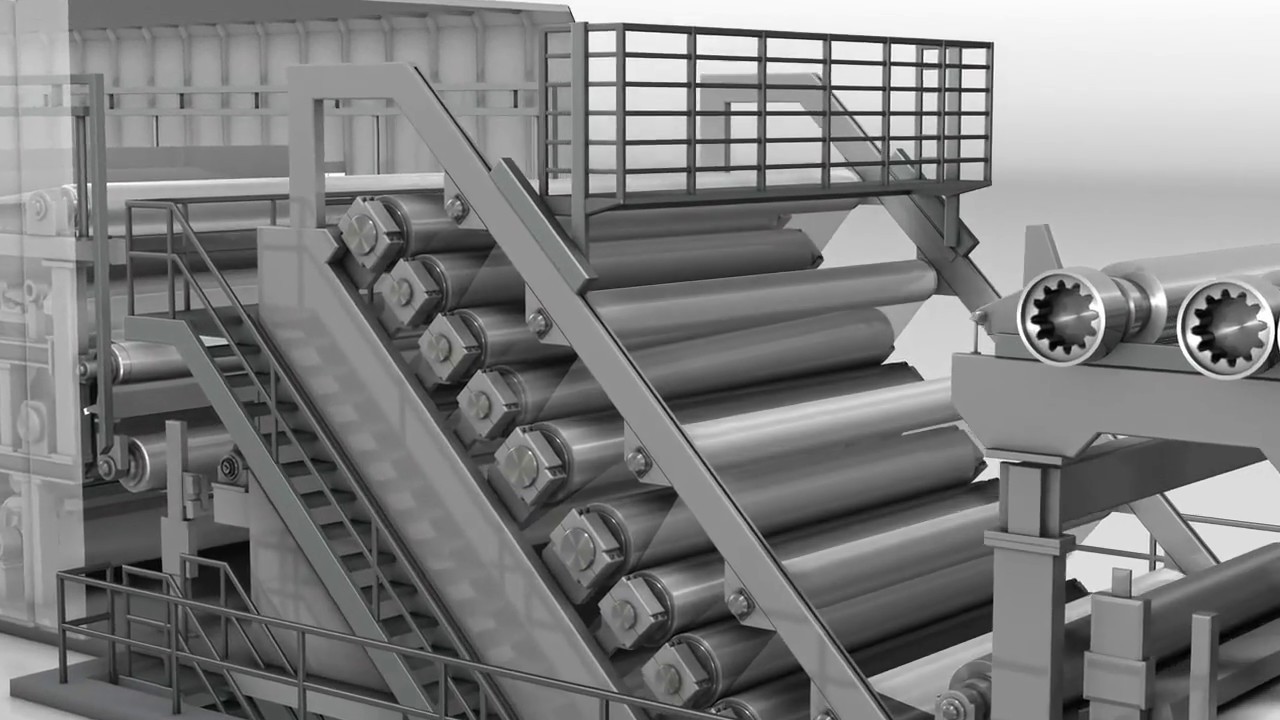

Calendar Section
- Prolong lifetime of bearings and rolls
- Decrease paper folds and breaks
- Reduce waste
- Ensure uniform winding
Roll parallelism: Our tolerance values are based on 15 years of experience
Converting & Packaging
PARALIGN helps prevent web folds, creases, and the so-called “long sides”

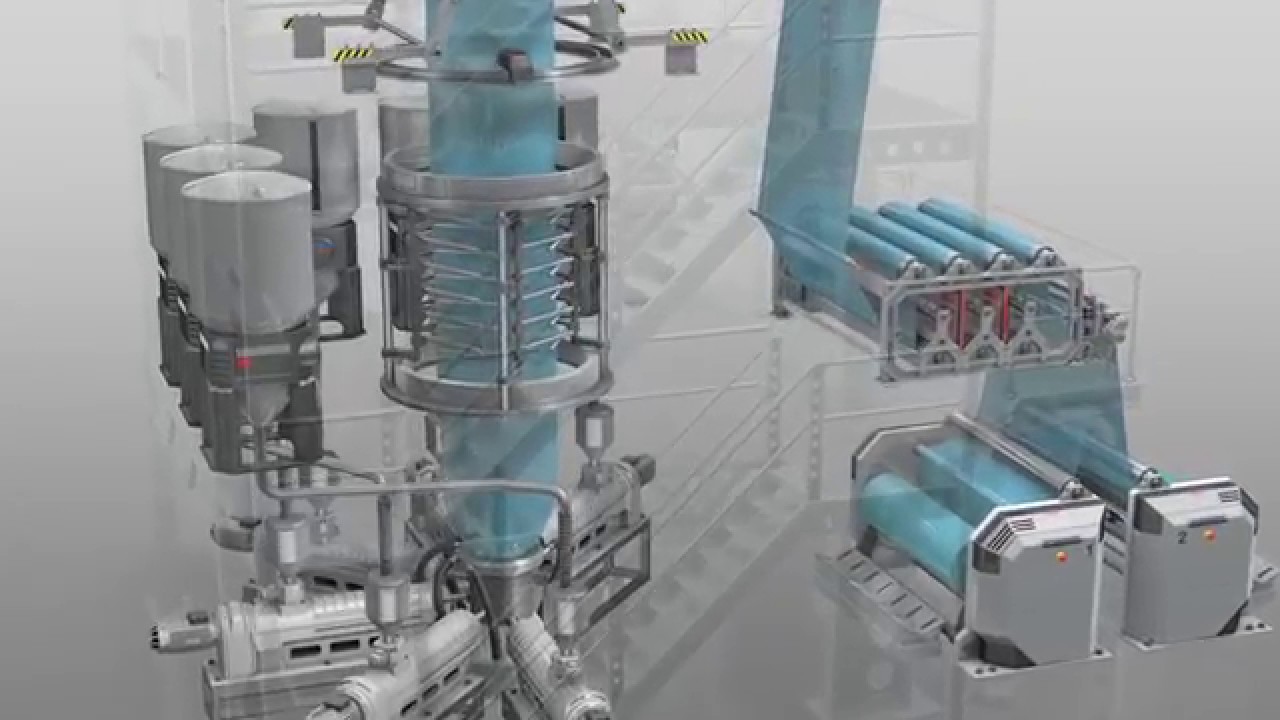

Blow Film Extrusion Line
- Prevent and reduce ‘long sides’, or the asymmetric winding of the web
- Ensure uniform thickness profile
- Decrease folds, creases and web breaks
- Increase product quality
- Reduce waste
Roll parallelism: Our tolerance values are based on 15 years of experience
Printing
PARALIGN increases machine availability and product quality

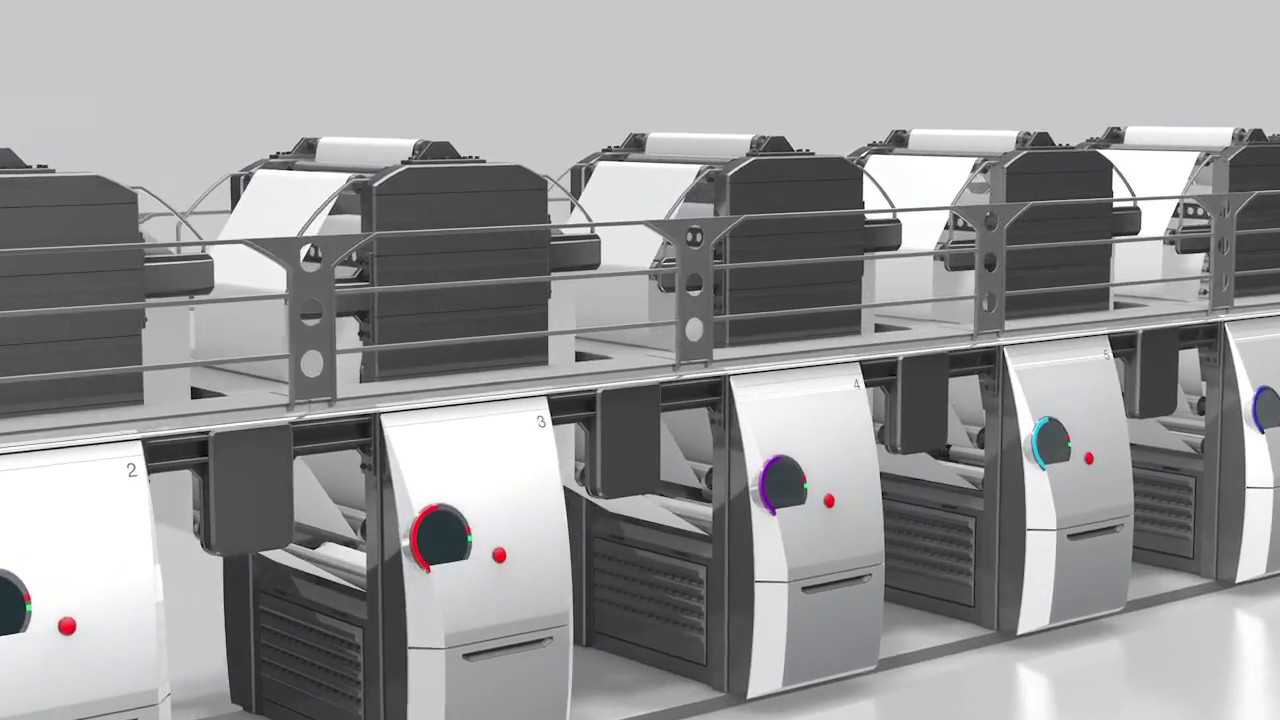

Printing Press
- Reduce maculature, spoilage, and waste
- Decrease web folds and breaks
- Short setup times when the product is changed
- Correct passers and gauge pins
Steel Industry
PARALIGN can even measure rolls over long distances and rolls that are difficult to access

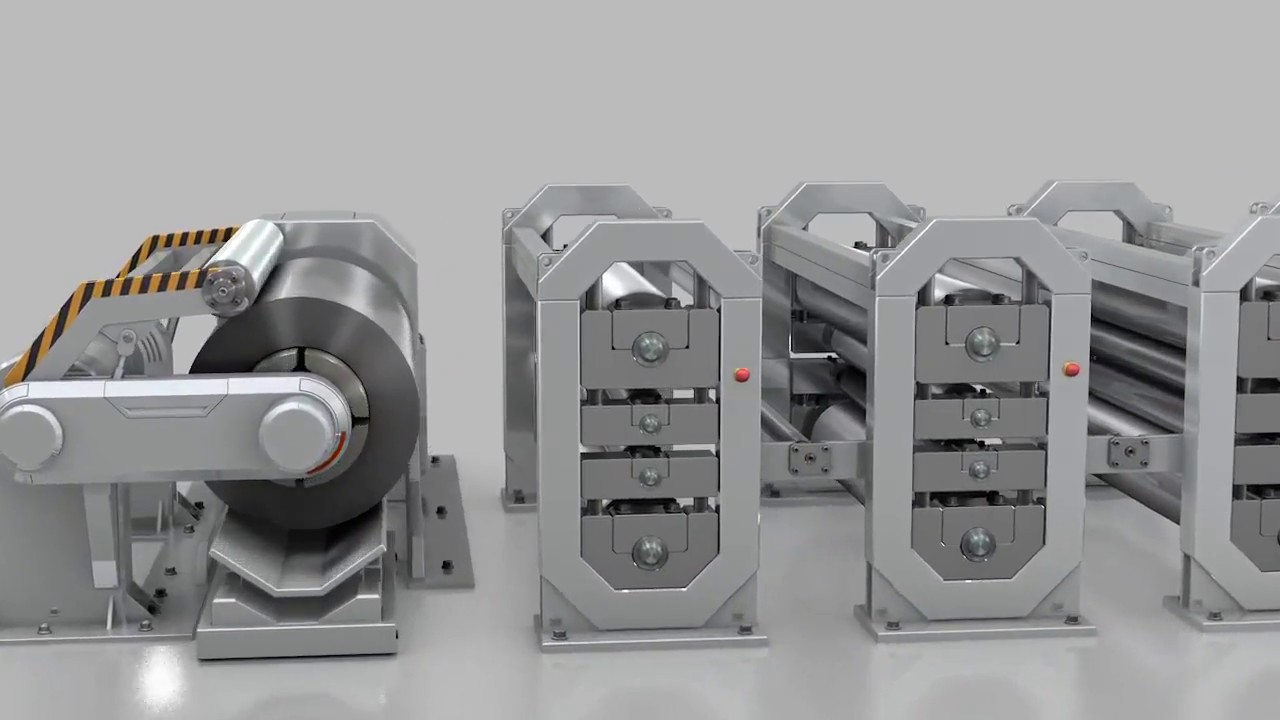

Tandem rolling mill
- Prevent asymmetrical thickness profile
- Decrease web movement due to improved position of the support rolls
- Ensure uniform surface density

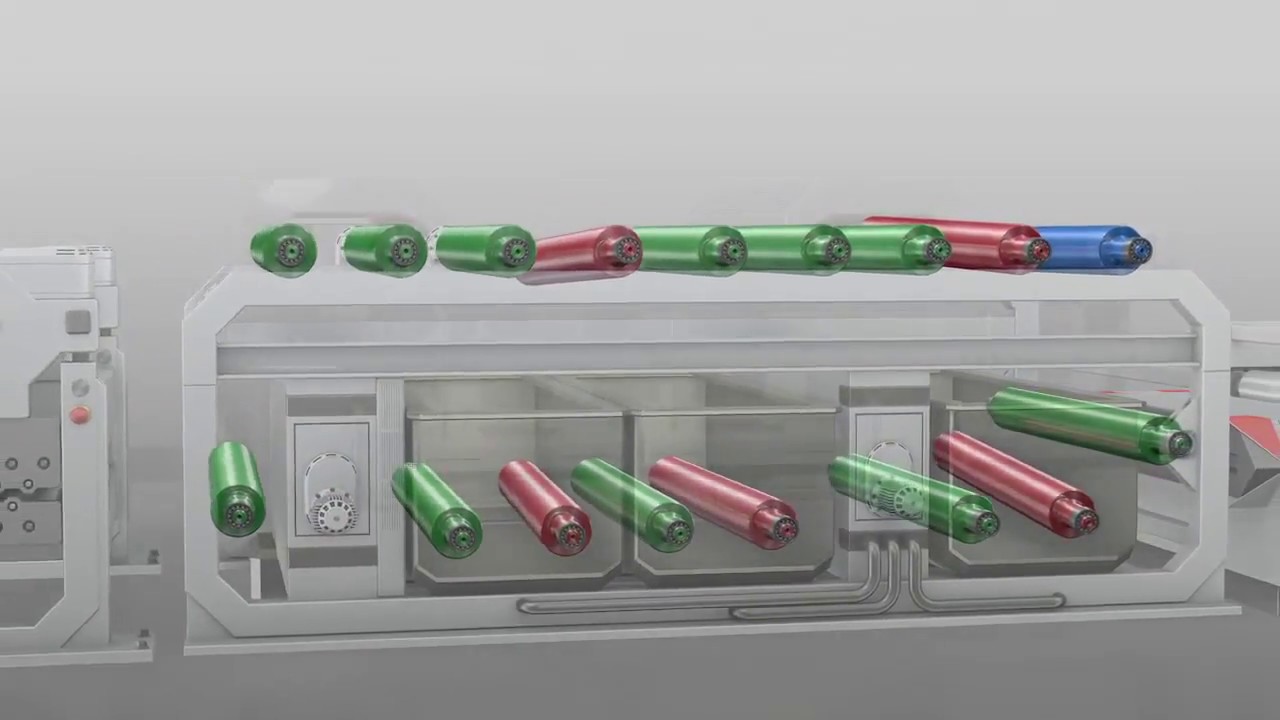

Push Pull Pickling line / cold rolling mill
- Prevent strip misalignment
- Reduce downtime due to strip failure
Roll parallelism: Our tolerance values are based on 15 years of experience
Roll alignment check in a printing factory: Watch the video
What our clients say?
“During the realignment of a large gravure printing press, the entire machine was measured with PARALIGN by PRUFTECHNIK and corrections made on the basis of the offset detected. Then the machine was measured again to confirm good alignment.”
“PARALIGN is very fast and easier to use than optical measuring devices. Four times more cylinders can be measured with PARALIGN than using traditional optical measuring devices.”
